Description
Transmission
| Transmission Type | HST |
| No. of Travel Speeds – Forward / Reverse | 3 Range |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0 mph (0 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 15.4 mph (24.7 km/h) |
Power Take-Off (PTO)
| PTO Type Transmission | Independent |
| PTO Power | 28 hp (21 kW) |
| Rear PTO Speeds (1st) | 540 rpm |
| Mid PTO Speeds | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | N/A |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 120.9 in. (3,070 mm) |
| Width | 54.5 in. (1,385 mm) |
| Height from Top of ROPs | 99.2 in. (2,520 mm) |
| Wheelbase | 65.7 in. (1,670 mm) |
| Ground Clearance | 13.4 in. (340 mm) |
| Front Tread Ag Tires – Min | 48.2 in (1,225 mm) |
| Rear Tread Ag Tires – Min | |
| Min. Turning Radius w/ Brake | 8.0 ft. (2.4 m) |
Hydraulics
| Total Pump Flow | 11.7 gpm (44.4 L/min) |

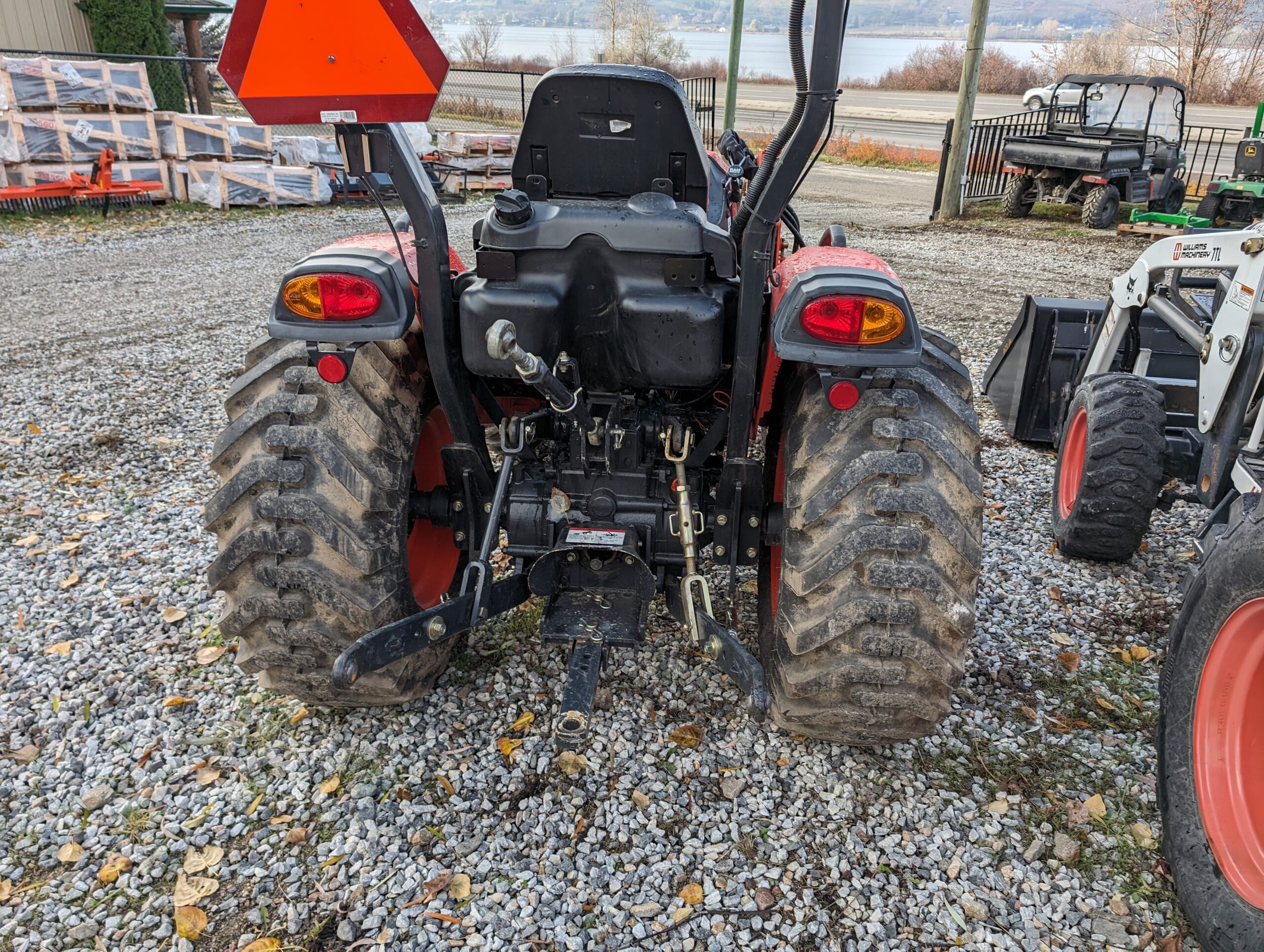

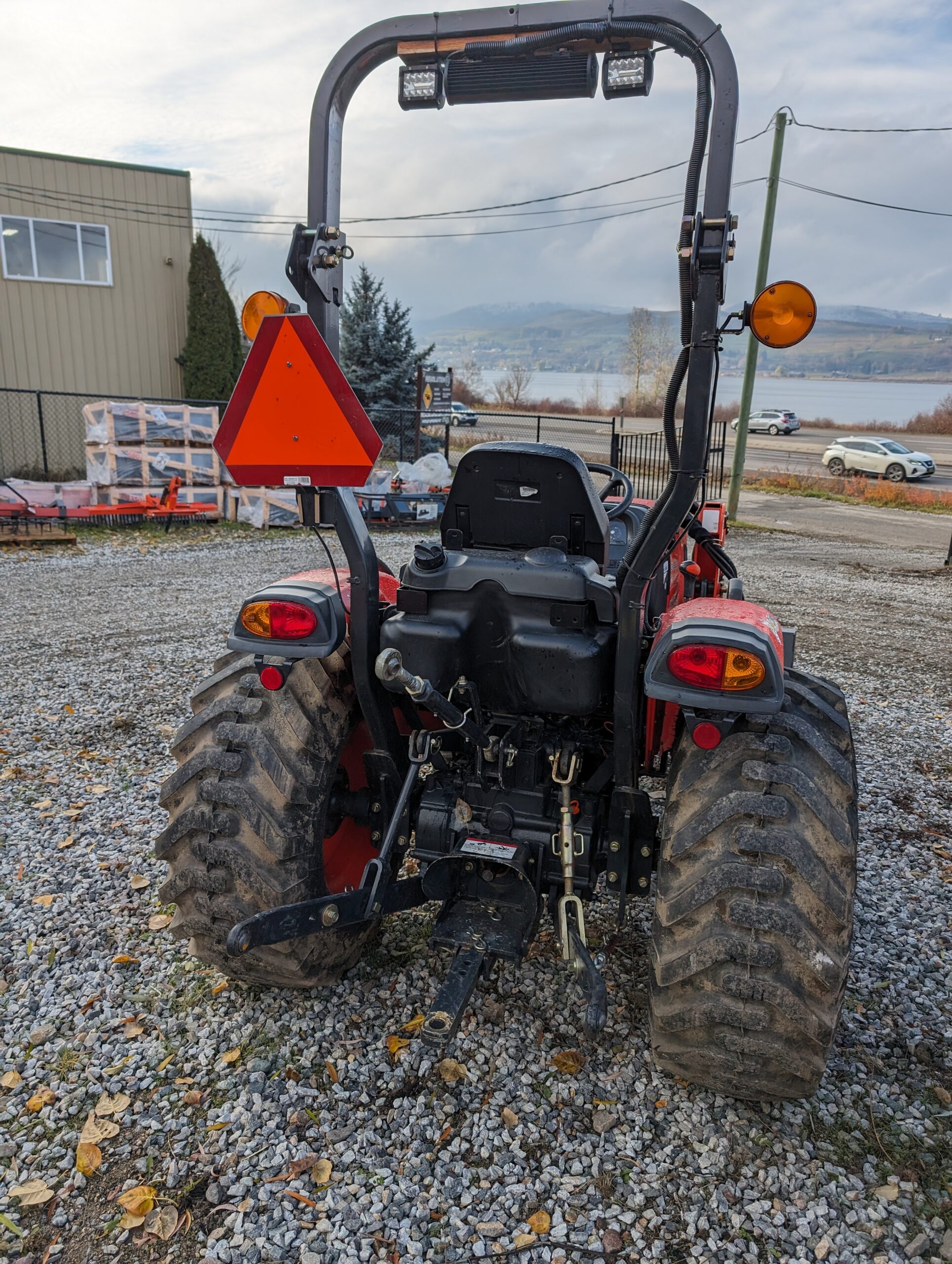

3-Point Hitch
| Standard Category | Category 1 |
| Lift Capacity, 24″ aft of hitch | 1,631 lbs. (740 kg) |
| Control Type | Position |
Weight
| Weight w/ Ag Tires w/ ROPs | 2,921 lbs. (1,325 kg) |

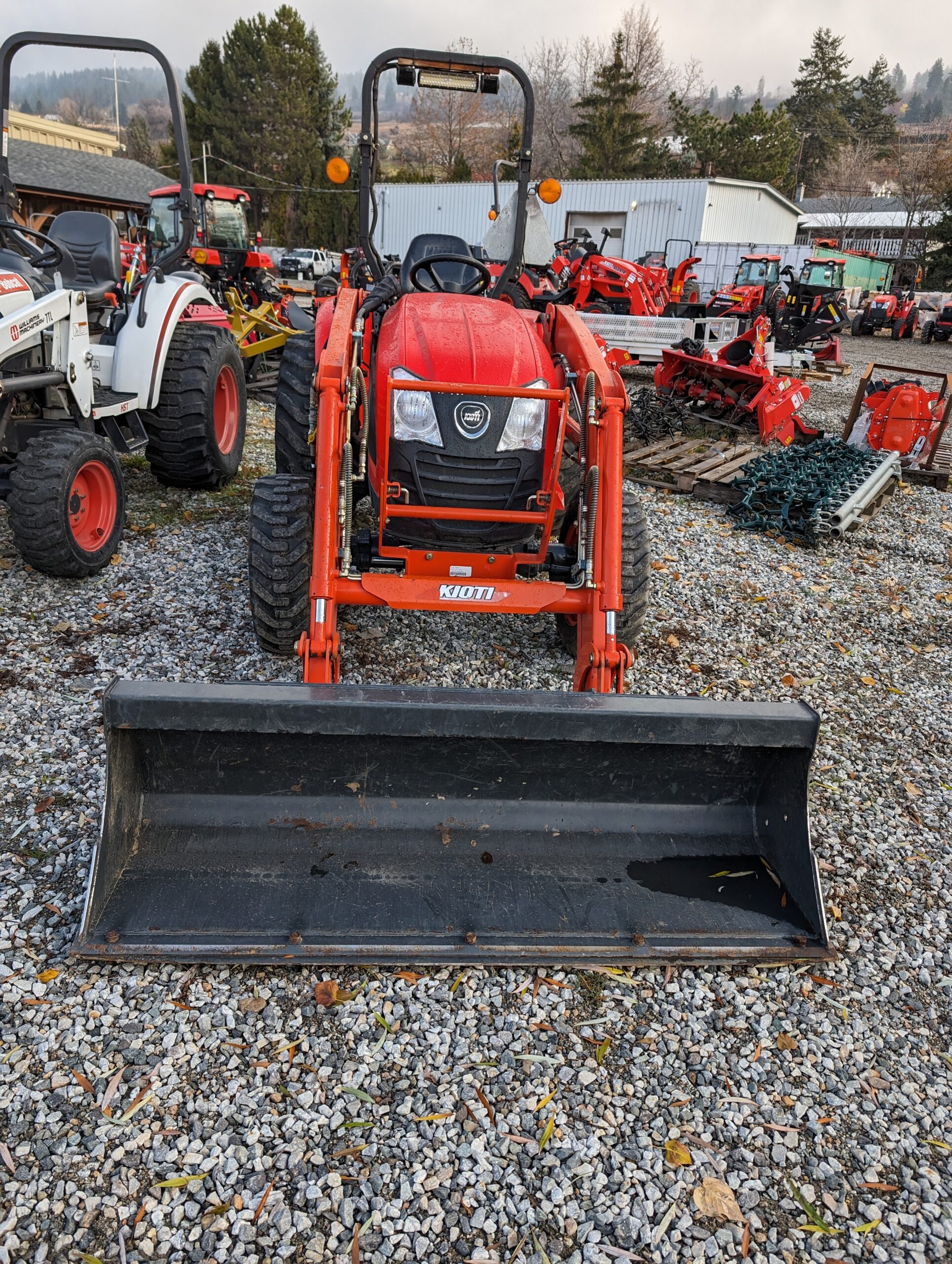

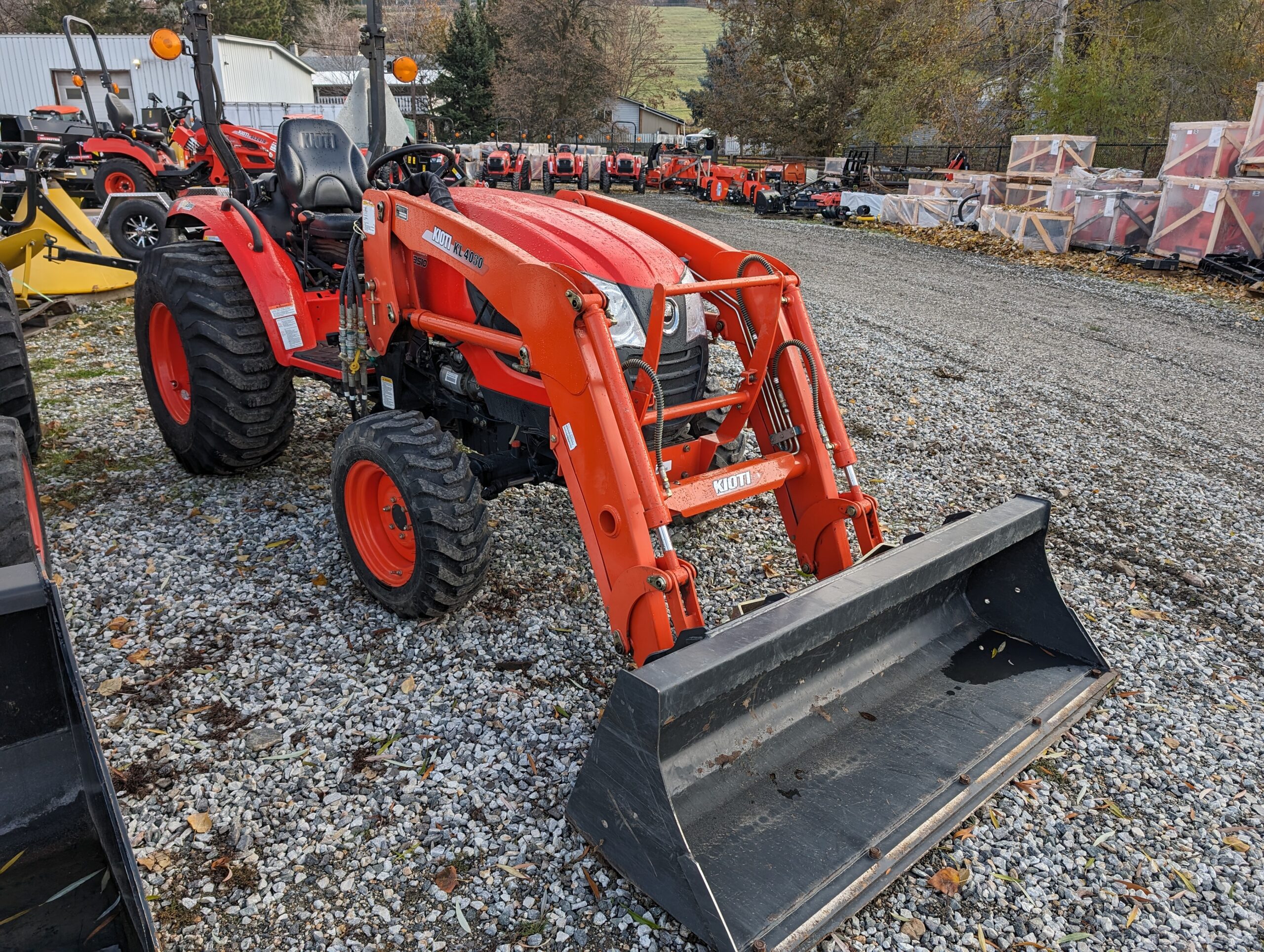

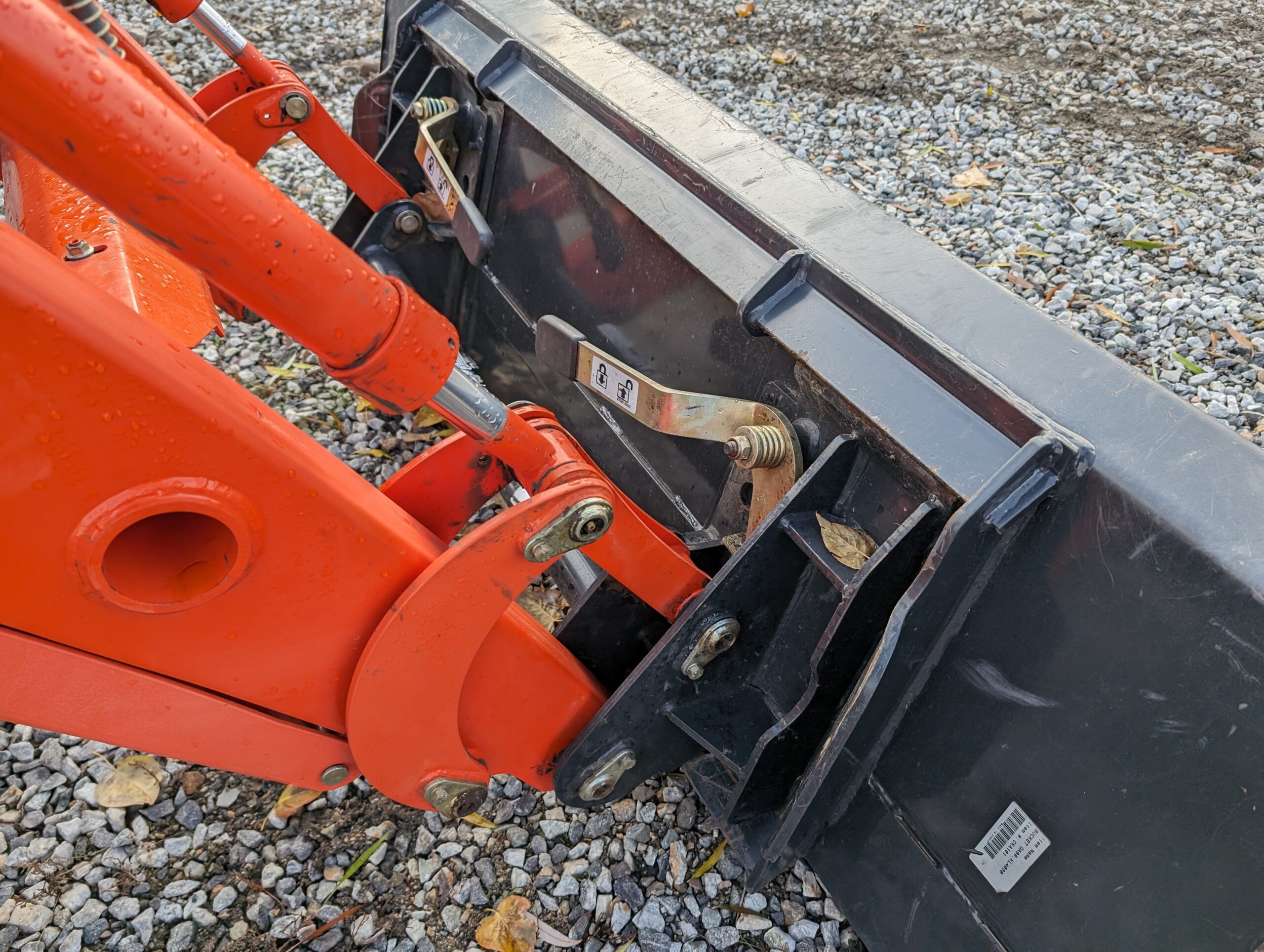

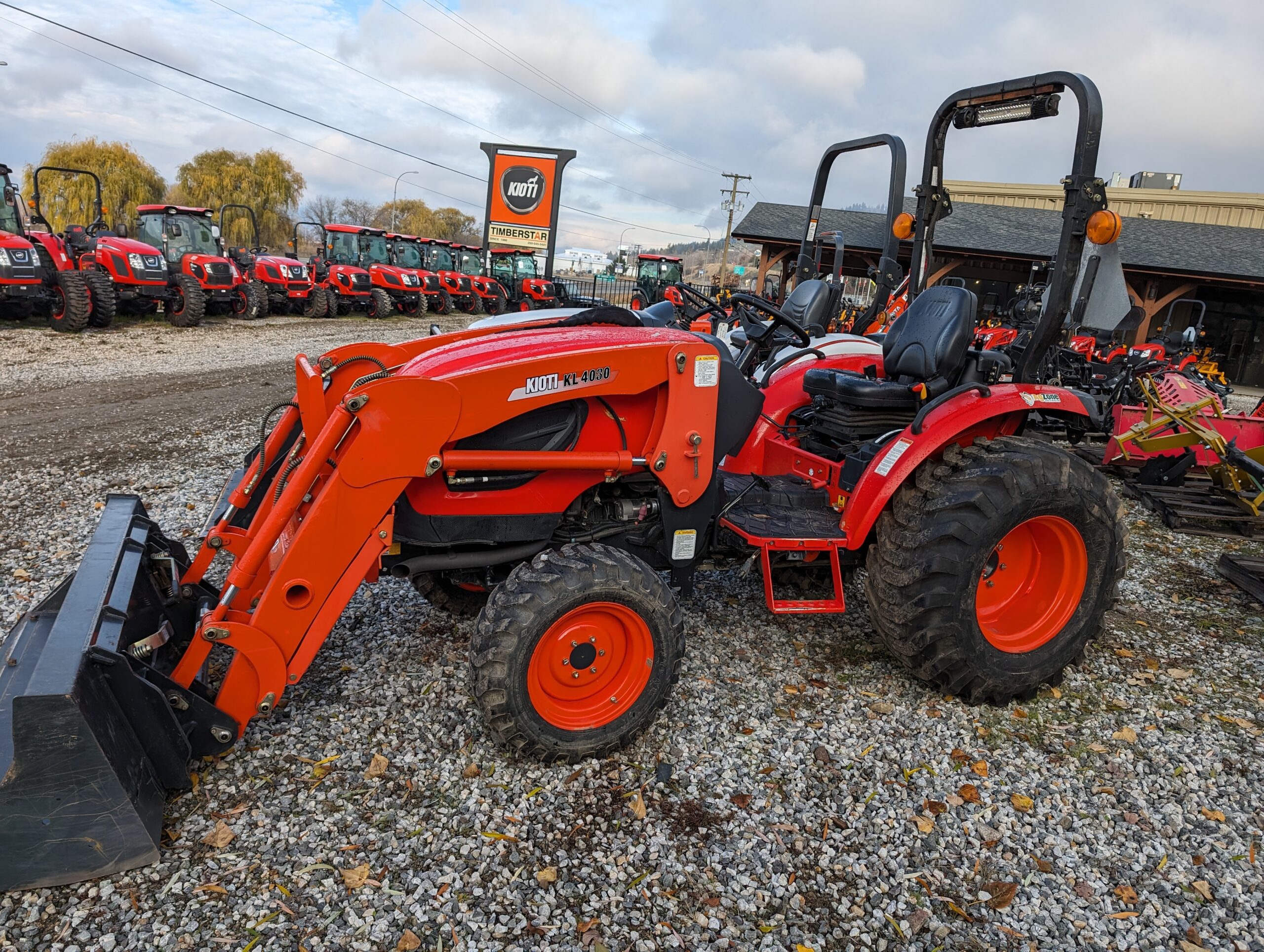

Front End Loader Specifications
| Maximum Lift Height to Pivot Pin | 98.4 in. (2,500 mm) |
|---|---|
| Maximum Lift Height Under Level Bucket | 93 in. (2,360 mm) |
| Clearance With Bucket Dumped 45 Degrees | 79.1 in. (2,010 mm) |
| Reach At Maximum Lift Height | 27.2 in. (690 mm) |
| Maximum Dump Angle | 48° |
| Reach With Bucket on Ground | 62.2 in. (1,580 mm) |
| Maximum Rollback Angle | 28° |
| Digging Depth Below Grade | 5.3 in. (135 mm) |
| Overall Height in Carry Position | 49.6 in. (1,260 mm) |

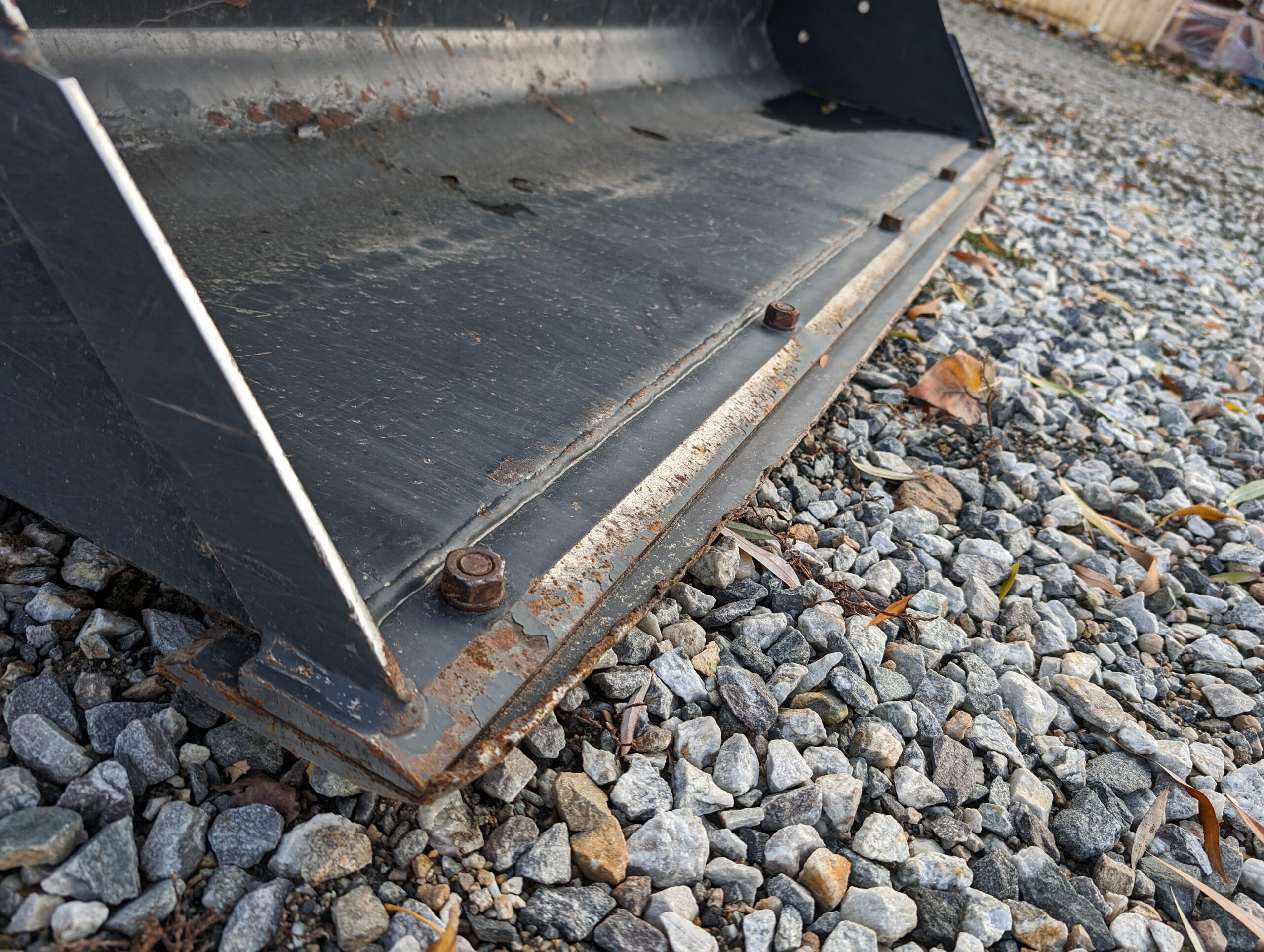

| Bucket Depth (Inner Shell) | 19.9 in. (505 mm) |
| Bucket Height | 20.7 in. (526 mm) |
| Bucket Length (Pivot Pin) | 26.9 in. (682 mm) |
| Relief Valve Setting (Loader Control Valve) | 2,560 psi |
| Rated Flow (Tractor System) | 6.9 gpm (26.12 L/min) |
| Lift Capacity at 59.84 in. (1,520 mm) Pivot Pin Height | 1,835 lbs. (832 kg) |
| Breakout Force @ Pivot Pins | 3,464 lbs. (1,571 kg) |
| Approximate Weight (With Bucket) | 60 in.: 959 lbs. (435 kg) / 66 in.: 981 lbs. (445 kg) |
| Bucket Capacity (Heaped) | 60 in.: 9.39 cu. ft. / 66 in.: 10.10 cu. ft. |
| Bucket Rollback Force at Ground Line | 1,763.7 lbs. (800 kg) |
| Bucket Size(s) Available (QA) | 60″ / 66″ |
