Description
Engine
- Engine BrandCub Cadet®
- Engine Model Number690-WUC
- Engine Displacement420cc
- Fuel Tank Capacity5 quarts US / 4.7 L
- Engine StartRecoil and Push-Button Electric
- GovernorMechanical
- Fuel DeliveryCarburetor
Drive System
- Number of Forward Speeds6
- Number of Reverse Speeds2
- Drive SystemAll-wheel Drive
- Drive TypeFriction Disc
- Tire Size16″ x 6.5″
- TreadX-TRAC™
Warranty
- Warranty3-year limited residential
- Auger Gearbox Warranty5-year limited
- Commercial Warranty1-year limited
- Chute Warranty3-year limited
- Warranty DisclaimerSee owners manual for warranty details and information. Certain restrictions apply.

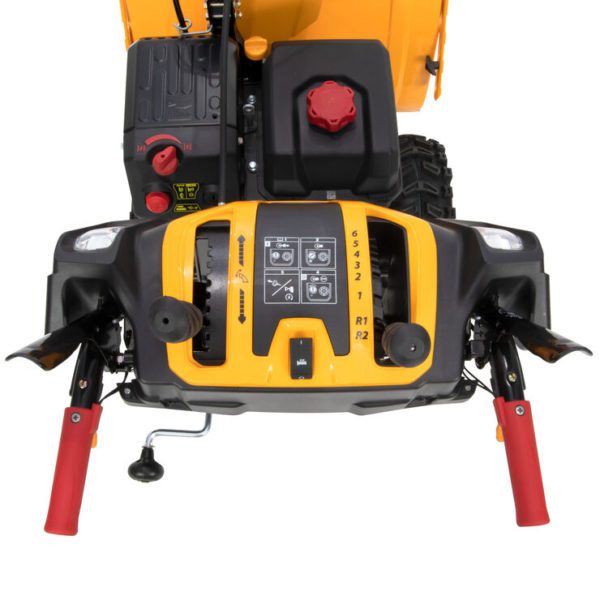

Controls
- Handle Grip(s)Soft-Touch Heated Grips
- Pitch ControlRemote Single-Lever
- Chute Rotation200°
- Chute ControlOverhead Crank
- Single-Hand OperationStandard
- Steering ControlTrigger-Controlled Power Steering
Power and Performance
- Clearing Width28″
- Intake Height23″
- Auger Gear BoxHeavy-duty cast aluminum
- Number of StagesThree
Dimensions
- Auger Diameter12″
- Impeller Diameter12″
- Accelerator Diameter12″
Additional Specifications
- Headlight(s)Dual LED
- Shave PlateHeavy Duty Steel
- Skid ShoesReversible Poly
- Drift CuttersYes
- Auger MaterialSerrated Steel
- Chute Material Steel
- Chute Clearing DeviceYes
- Model Number31AH5EVY596
Disclaimer
- Specifications DisclaimerSpecifications are subject to change without notice and without incurring obligation. Products depicted on the website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features, and non-functional appearance. See other general disclaimers at the bottom of our website.
