HX1151C

Main Features

  • Engine Gross Power: 115.3 hp (86 kW)
  • PTO Type: Independent
  • Transmission Type: Synchronized
  • Shuttle: Wet Multi Disc Clutch
  • Deluxe Cab with A/C, Heat and Ventilating Roof Panel
  • Rear Differential Lock
  • 32 x 32 Power Shuttle Transmission
  • Creep Speed Gear
  • Category II Three-point Hitch
  • Telescopic Lower Link Ends
  • Crank Adjustable Lift Link
  • Dual Remote Hydraulic Valves
  • Interchangeble PTO Shafts
  • PTO Cruise

Learn More

Book a Test Drive
Category:

Description

Engine

Engine Model 4J243TA-TP5B
Engine Gross Power 115.4 hp (93.5 kW)
Rated Speed 2,200 rpm
No. of Cylinders 4
Fuel Type Diesel
Displacement 233.9 cu. in. (3,833 cc)
Fuel Tank Capacity 47.55 gal. (180 L)

Transmission

Transmission Type Synchronized
Shuttle Power Shuttle with hi-lo shift
No. of Travel Speeds – Forward / Reverse 24F / 24R
Min. Travel Speed of Forward w/ Ag @ Engine rated speed 1.15 mph (1.85 km/h)
Max. Travel Speed of Forward w/ Ag @ Engine rated speed 23.84 mph (38.36 km/h)

Power Take-Off (PTO)

PTO Type Trans Independent
PTO Power 83.9 hp (62.6 kW)
Rear PTO Speeds (Standard) 540/1,000 rpm

Brakes and Clutch

Brakes Wet Disc Type
Clutch Wet Multi Disc Clutch

Dimensions w/ AG Tire

Length w/ 3-point hitch 170.78 in. (4,338 mm)
Width 88.58 in. (2,250 mm)
Height from Top of Cab 111.93 in. (2,843 mm)
Wheelbase 93.3 in. (2,410 mm)
Ground Clearance 18.94 in. (481 mm)
Front Tread Ag Tires – Min 65.35 in. (1,660 mm)
Rear Tread Ag Tires – Min 70.47 in. (1,790 mm)

Hydraulics

Pump Gear
Pump Capacity (Max. Flow Rate) 31.96 gpm (121 L/min)

3-Point Hitch

Standard Category Category II
Lift Capacity, 24″ aft of hitch 8,002 lbs. (3,630 kg)
Control Type Electronic Control

Weight

Weight with Ag Tires 10,230 lbs. (4,640.25 kg)

Equipment & Panel

Standard Equipment Optional Equipment Instrument Panel
  • 1st / 2nd Remote Hydraulic Valves
  • Creep Speed Gear
  • Powershuttle Response
  • Interchangeable PTO Shafts (540/1,000 rpm)
  • 4WD
  • Auto 4WD Brake
  • Joystick Valve
  • Auto PTO
  • Draft Control
  • Rear View Mirror
  • Parking Brake
  • 7 Pin Socket / 3 Pin Socket
  • Head, Signal, Backup and Cabin Lamp
  • Work Light
  • Battery Disconnect Switch
  • Rear Window Wiper
  • Rear Window Defroster
  • CD Player with AM/FM Radio
  • Swivel Seat
  • Sunvisor
  • PTO Cover
  • Cup Holder
  • Parking Brake Buzzer
  • Outside Lift Control
  • Power Outlet (2EA)
  • PTO Cruise
  • Illuminated Dashboard
  • Tilt Steering Wheel
  • Dual Air Cleaner
  • Hand Clutch
  • Hi-Low Shift
  • 3rd Remote Hydraulic Valve
  • Front Weight
  • Front Fenders
  • Extra LED Work Light
  • Beacon Lamp Wiring Kit
  • Beverage Cooler
  • Locking Fuel Tank Cap
  • Backup Alarm
  • Tachometer with Hour Meter
  • Temperature Gauge
  • Fuel Gauge
  • PTO on Indicator
  • Oil Pressure Indicator
  • Low Fuel Indicator
  • Battery Charge Lamp
  • Glow Plug Indicator
  • 4WD Indicator

Available Tires

Agricultural

 Front13.6-24
Rear18.4-34

R14

 Front13.6-24
Rear18.4-34

Attachments

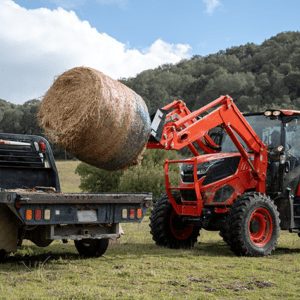

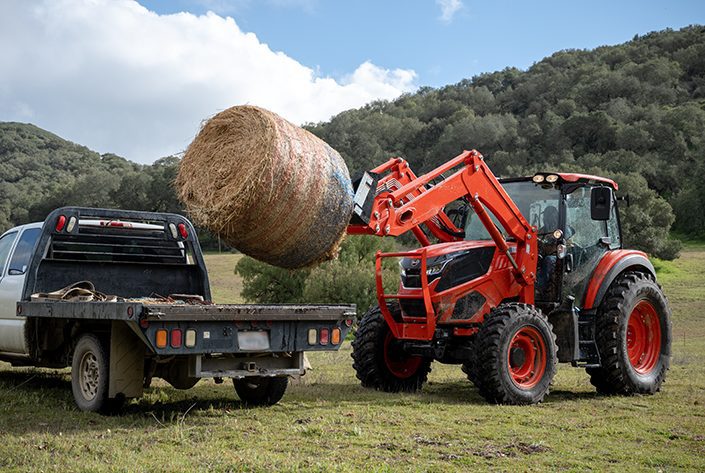

Front End Loaders : KL1153

kl1153

Fits KIOTI PX9530PC, PX1053PC and PX1153PC tractors. Specifications may vary with tractor model, front axle configurations, tire size option and type of attachment and are subject to change without notification.
