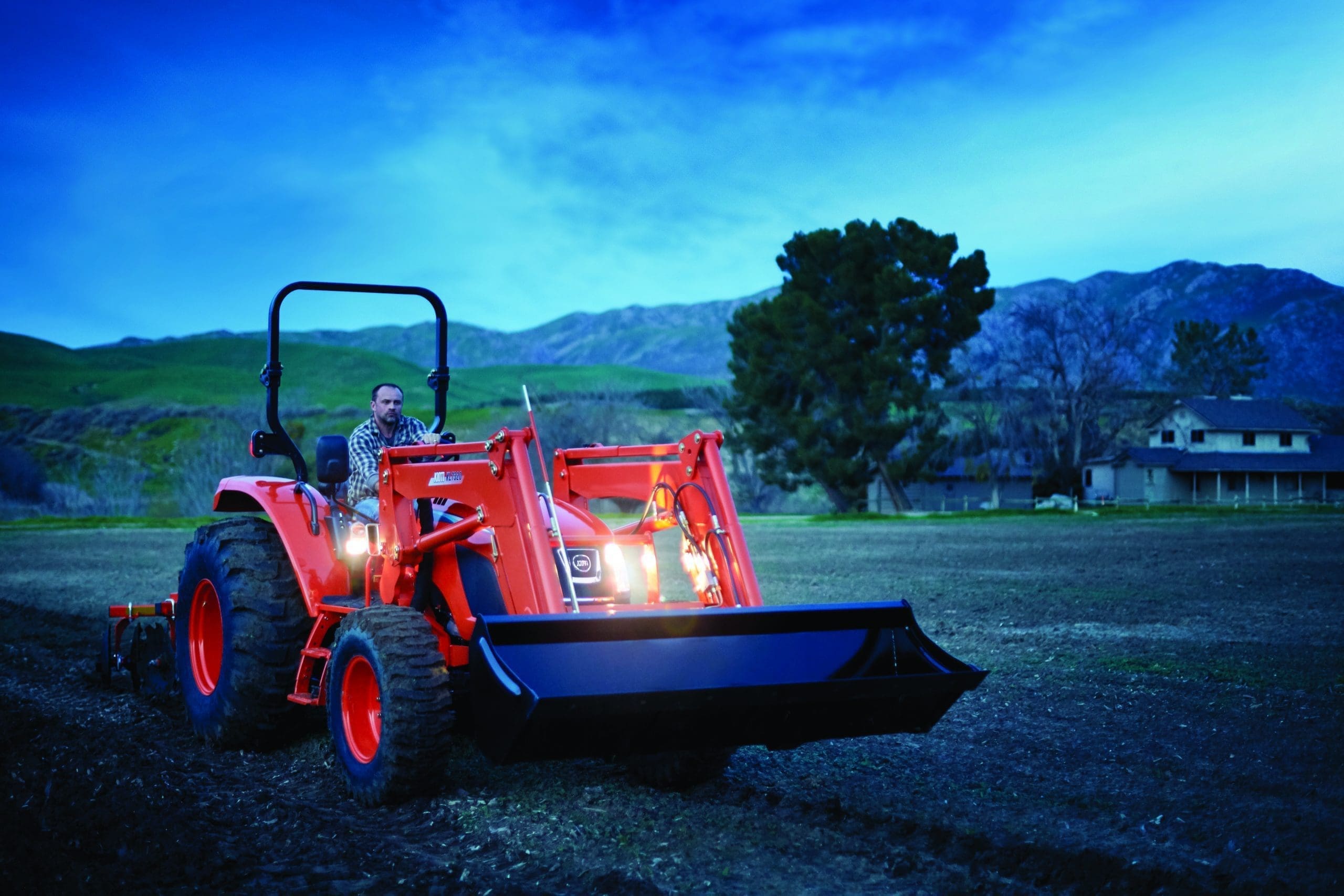

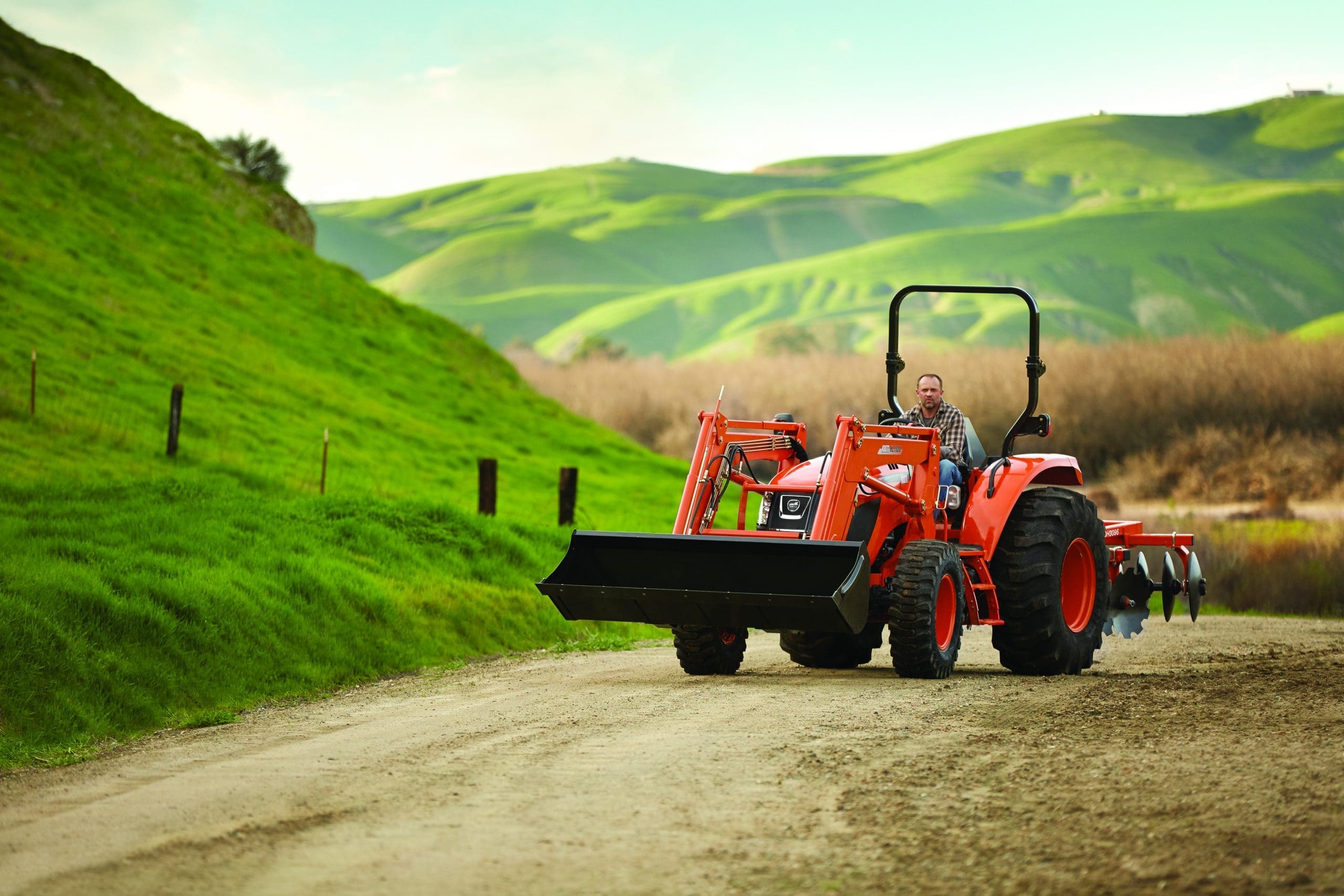

RX7320

RULE YOUR LAND.

With deluxe climate-controlled cab models and the heaviest lift capacity in its class, the KIOTI® RX Series, ranging from 66 HP to 73 HP, is all the power, comfort and dependability a landowner could want.

  • Cab & ROPS Models
  • Power Shuttle or Synchro Shuttle
  • Premium Features
  • Daedong® Turbo Engine
  • Maximum Comfort
  • Heavy Duty Lift Capacity

Learn More

Description

Engine

Engine 4F243T
Engine Gross Power 73 hp (54.4 kW)
Rated Speed 2,600 rpm
No. of Cylinders 4
Fuel Type Diesel
Aspiration Turbo Charged
Displacement 148.6 cu.in. (2,435 cc)
Fuel Tank Capacity 22.5 gal. (85 L)

Transmission

Transmission Type Synchro Shuttle
Shuttle Synchronized
Main Gear Synchronized
No. of Travel Speeds – Forward / Reverse 12F/12R
Min. Travel Speed of Forward w/ Ag @ Engine rated speed 1.01 mph (1.63 km/h)
Max. Travel Speed of Forward w/ Ag @ Engine rated speed 23.53 mph (37.86 km/h)

Power Take-Off (PTO)

PTO Type Trans Independent
PTO Power 63 hp (47 kW)
Rear PTO Speeds (1st) 540 rpm / 540E rpm

Brakes and Clutch

Brakes Wet Multi Disc
Clutch Dry Single Plate

Dimensions w/ AG Tire

Length w/ 3-point hitch 146.3 in. (3,715 mm)
Width 77.2 in. (1,960 mm)
Height from Top of ROPS 107.5 in. (2,730 mm)
Wheelbase 83.9 in. (2,130 mm)
Ground Clearance 17.3 in. (440 mm)
Front Tread Ag Tires – Min 58.1 in. (1,475 mm)
Rear Tread Ag Tires – Min 59.6 in. (1,515 mm)
Turning Radius w/ Brake 11.2 ft. (3.4 m)

Hydraulics

Pump Gear
Pump Capacity (Max. Flow Rate) 19.23 GPM (72.8 L/min)

3-Point Hitch

Standard Category Category II
Lift Capacity, 24″ aft of hitch 3,898 lbs. (1,768 kg)
Control Type Position, Draft and Mixed

Weight

Weight with Ag Tires 5,589 lbs. (2,535 kg)
