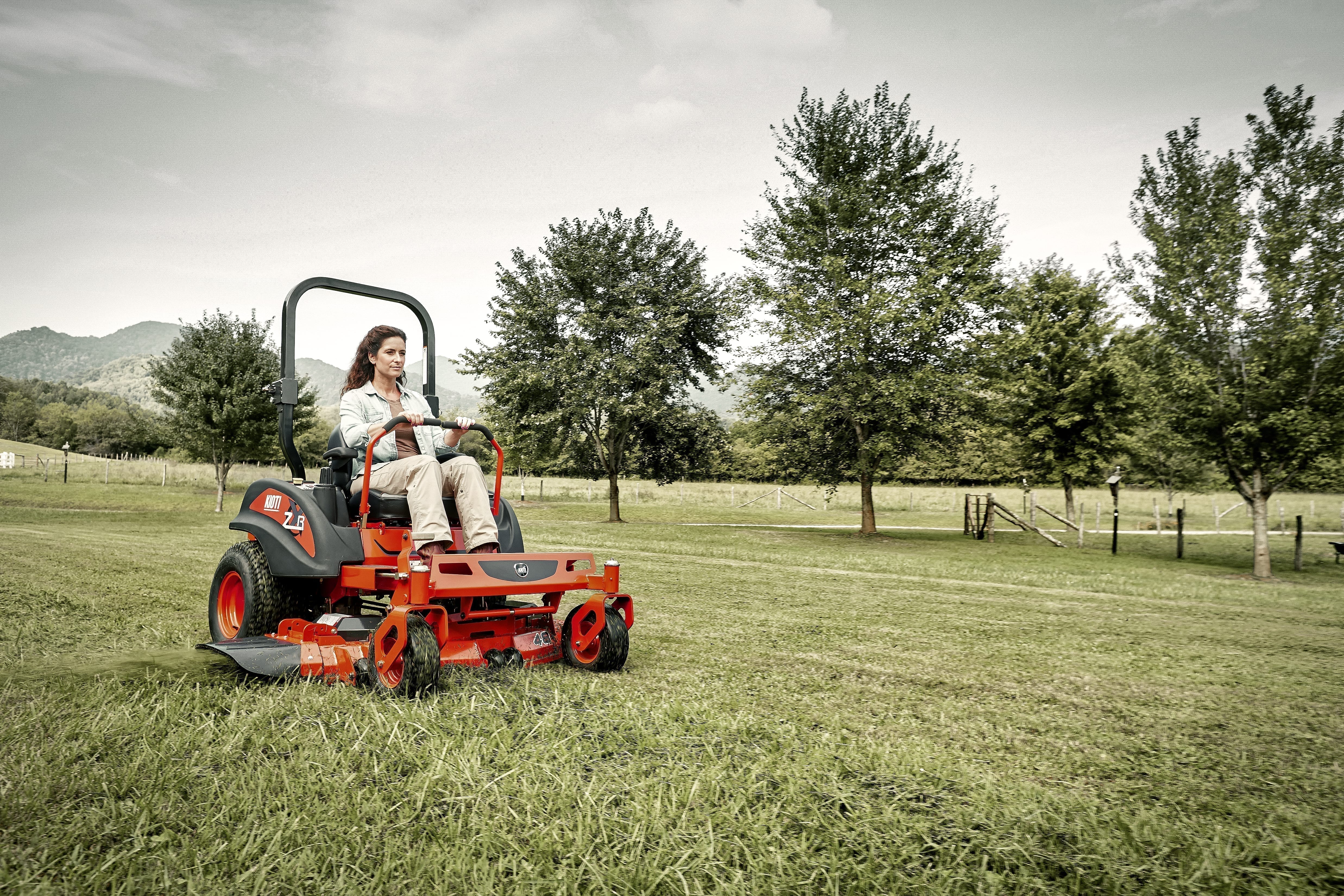

ZXC SE Series

With its 3-inch suspension high back seat, the ZXC SE Series was designed for commercial applications with professionals in mind. With a Kohler Command PRO® engine combined with a Hydro-Gear® ZT-3400 transmission, the ZXC SE delivers reliable and hardworking performance. Owners can choose from a 48, 54, or 60-inch mower deck, each with a fabricated, reinforced 10-gauge steel deck and standard notch blades that cut through the toughest turf. The large 12.5-gallon fuel capacity saves time for the operator who spends a significant amount of time mowing.

Learn More

Description

Model ZXC48 SE ZXC54 SE ZXC60 SE

Engine

Type Kohler Command PRO® Kohler Command PRO® Kohler Command PRO®
Engine Gross hp (kW) 22.5 (16.77) 23.5 (17.52) 25 (18.64)
Displacement cu. in. (cc) 42.35 (694) 42.35 (694) 45.58 (747)
Choke Manual Manual Manual
Fuel Tank Capacity gal. (l ) 12.5 (47.31) 12.5 (47.31) 12.5 (47.31)
Fuel Requirement Unleaded Gasoline (87 Octane or higher) Unleaded Gasoline (87 Octane or higher) Unleaded Gasoline (87 Octane or higher)

Drive Train

Model Hydro-Gear ZT-3400 Hydro-Gear ZT-3400 Hydro-Gear ZT-3400
Displacement (Pump/Motor) cc 12/16 12/16 12/16

PTO Type

Clutch ft./lb. 200 200 200

Electrical

Charging System amp 15 15 15

Tire Size

Front 13×6.5-6 13×6.5-6 13×6.5-6
Rear 23×10.5-12 23×10.5-12 23×10.5-12

Traveling Speeds

Forward mph (km/h) 10 (16.1) 10 (16.1) 10 (16.1)
Parking Brake Internal Integrated in Axle Internal Integrated in Axle Internal Integrated in Axle

Dimensions

Overall Length in. (mm) 80.7 (2,049.78) 80.7 (2,049.78) 81.7 (2,075.18)
Overall Width in. (mm) 60.7 (1,541.78) 67.3 (1,709.42) 72.6 (1,844.04)
Overall Height in. (mm) 71.5 (1,816.1) 71.5 (1,816.1) 71.5 (1,816.1)
Wheelbase in. (mm) 48.5 (1,231.9) 48.5 (1,231.9) 49.5 (1,257.3)
Width (Tire to Tire) in. (mm) 51.3 (1,303.02) 51.3 (1,303.02) 51.3 (1,303.02)
Approximate Curb Weight lb. (kg) 939 (425.92) 957 (434.08) 992 (449.96)

Mower Deck

Mower Deck Type Fabricated Fabricated Fabricated
Lift Mechanism Foot Pedal Foot Pedal Foot Pedal
Deck Steel Thickness 10-gauge with 7-gauge at edge area 10-gauge with 7-gauge at edge area 10-gauge with 7-gauge at edge area
Anti-Scalp Ball Rollers 5 (4 front, 1 rear) 6 (4 front, 2 rear) 8 (4 front, 4 rear)
Cutting Width of Mower in. (mm) 48 (1,219.2) 54 (1,371.6) 60 (1,524)
Blades Notched (Opt. Serrated) Notched (Opt. Serrated) Notched (Opt. Serrated)
Cutting Height in. (mm) 1.5-5 (38.1-127) 1.5-5 (38.1-127) 1.5-5 (38.1-127)
Discharge Chute Side (Molded Rubber) Side (Molded Rubber) Side (Molded Rubber)
Deck Height Adjustment Dial Type Dial Type Dial Type

Seat

Suspension Standard (3 Inch Suspension with High Back) Standard (3 Inch Suspension with High Back) Standard (3 Inch Suspension with High Back)
Sliding Adjustment Standard Standard Standard
Arm Rest Standard Standard Standard
Seat Belt Standard Standard Standard

Standard/Optional

Foldable ROPS Standard Standard Standard
Head Light Standard Standard Standard
Power Socket Standard Standard Standard
