Description
Specifications
| Model | BCH78XD |
| Cut Capacity | 78″ |
| Machine Width | 86.5″ |
| Max Brush Diameter | 10″ |
| Radial Poston Motor | 4 pkgs up to 40GPM |
| Recommended GPM | 20+GPM |
| Torque | Higher Torque capability at low speeds |
| Operating Pressure | Up to 4000 psi |
| Blades | 4 blades |
| Heavy Duty Cutting Bar | 1″ |
| Tip Speed | 20,000 ft/min |
| Deck Thickness | ¼” |
| Shipping Weight (LBS.) | 2,200 |

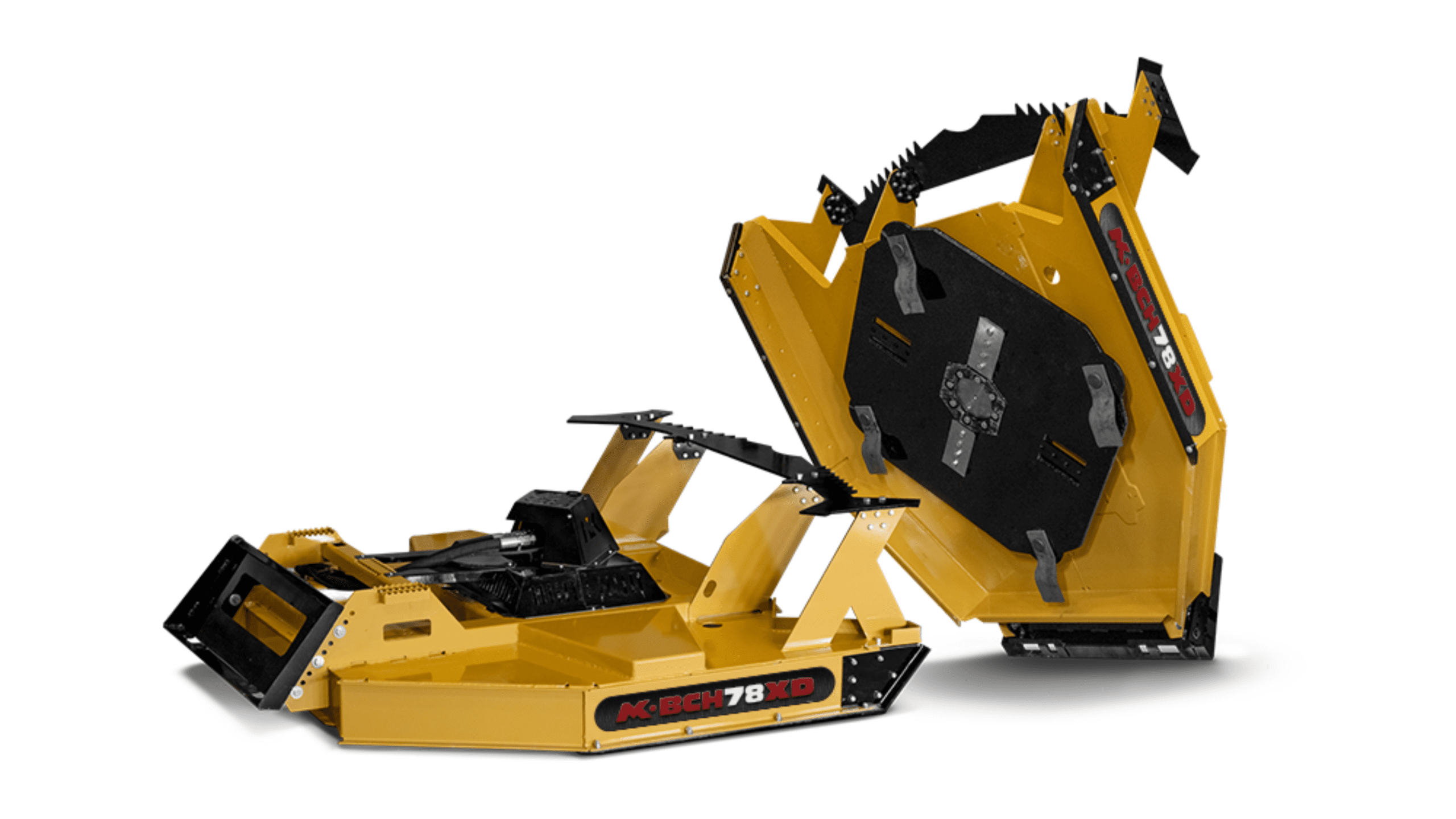

Oversized 1″ Thick Rotor
78″ diameter oversized rotor is manufactured using a 1″ thick steel plate.
Heavy Duty 10″ Cut Capacity
Easily power though dense brush, woody vegetation even 10 inch diameter trees across fields, forests and trails.
4 Replaceable Flail Knives
Mounted on the rotor are 4 replaceable pivoting flail knives designed to deliver maximum centrifugal velocity and shear force on every rotation.
Direct Mounted Motor
The hydraulic radial piston direct mounted motor and heavy duty bearing assembly deliver tip speeds of up to 20,000 ft. per minute and produce powerful torque at lower speeds for continuous cutting and faster recovery.
Reversible Front Push Bar
One side (A) has aggressive teeth for accurate pushing and directional control of larger trees. The reverse side (B) is smooth, intended for flattening dense underbrush.
Optional Bolt-On Mulching Knives
Bolt-on mulching knives go on the bottom of the rotor to effortlessly mulch though stumps and logs.
Optional Carbide Chipper Knives
Another option for mulching stumps and logs are the optional carbide tipped mulching knives.
