Description
| Production | |
| Manufacturer: | John Deere |
| Type: | Compact Utility tractor |
| Factory: | Augusta, Georgia, USA |
| John Deere 3032E Power | |
| Engine: | 31.0 hp 23.1 kW |
| PTO (claimed): | 25 hp 18.6 kW |
| John Deere 3032E Engine | |
| Yanmar 1.6L 3-cyl diesel | |
 Â Engine details … |
| Mechanical | |
| Chassis: | 4×4 MFWD 4WD |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | Two-post folding ROPS. |
| Transmission: | hydrostatic |
 Â Transmission details … |
|
| Capacity | |
| Fuel: | 6.4 gal 24.2 L |
| Hydraulic system: | 5.5 gal 20.8 L |
| Hydraulics | |
| Type: | open center |
| Capacity: | 5.5 gal 20.8 L |
| Pressure: | 2500 psi 172.4 bar |
| Pump flow: | 5.3 gpm 20.1 lpm |
| Total flow: | 9.3 gpm 35.2 lpm |
| Steering flow: | 4.0 gpm 15.1 lpm |
| Steering press.: | 1500 psi 103.4 bar |
| Tractor hitch | |
| Rear Type: | I |
| Rear lift (at 24″/610mm): | 1356 lbs 615 kg |
| Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 |
| Dimensions & Tires | |
| Wheelbase: | 60 inches 152 cm |
| Weight: | 2175 lbs 986 kg |
| Front tire: | 7.00-14 |
| Rear tire: | 11.2-24 |
 Â Full dimensions and tires … |
|
| John Deere 3032E attachments | |

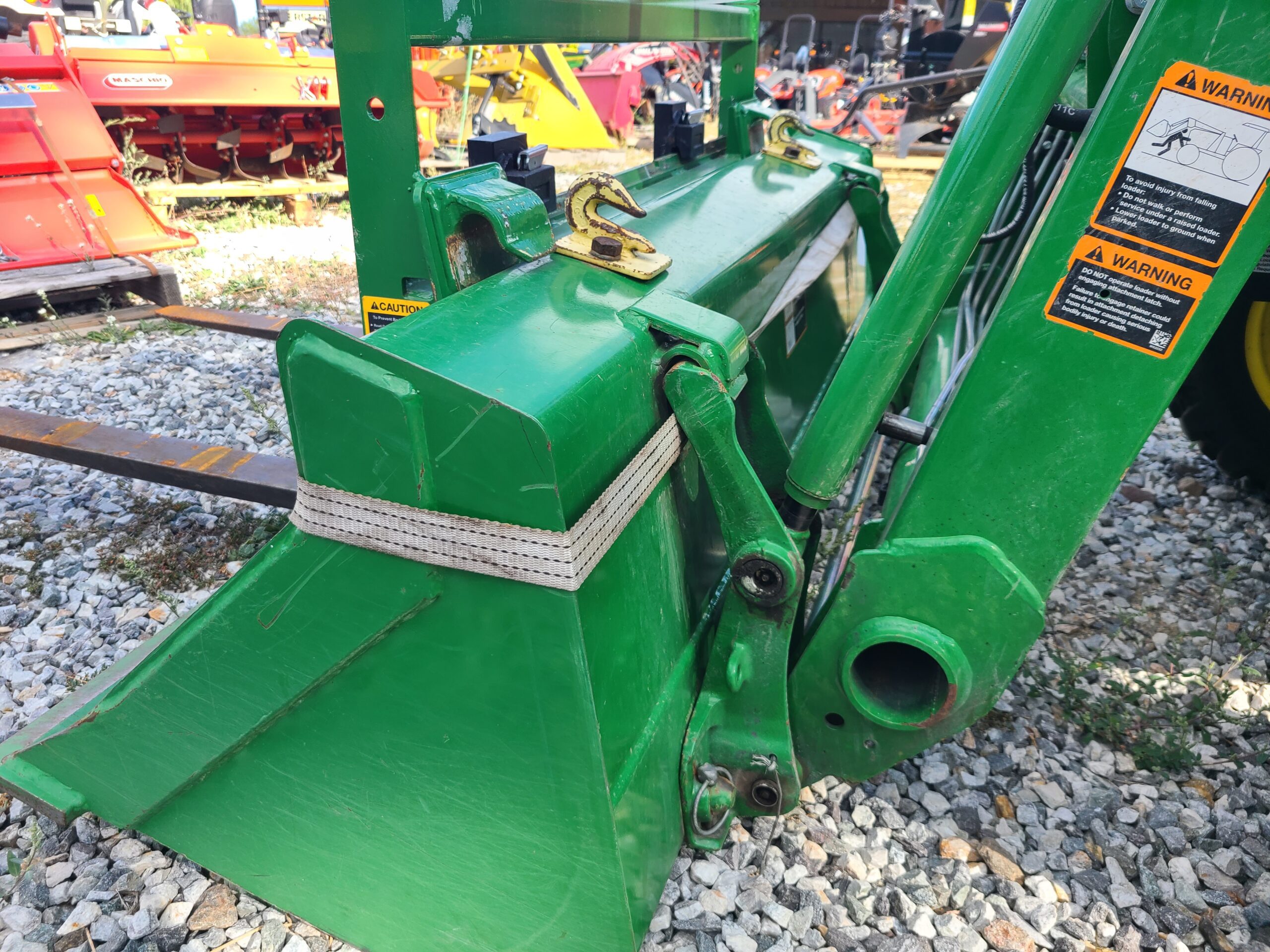

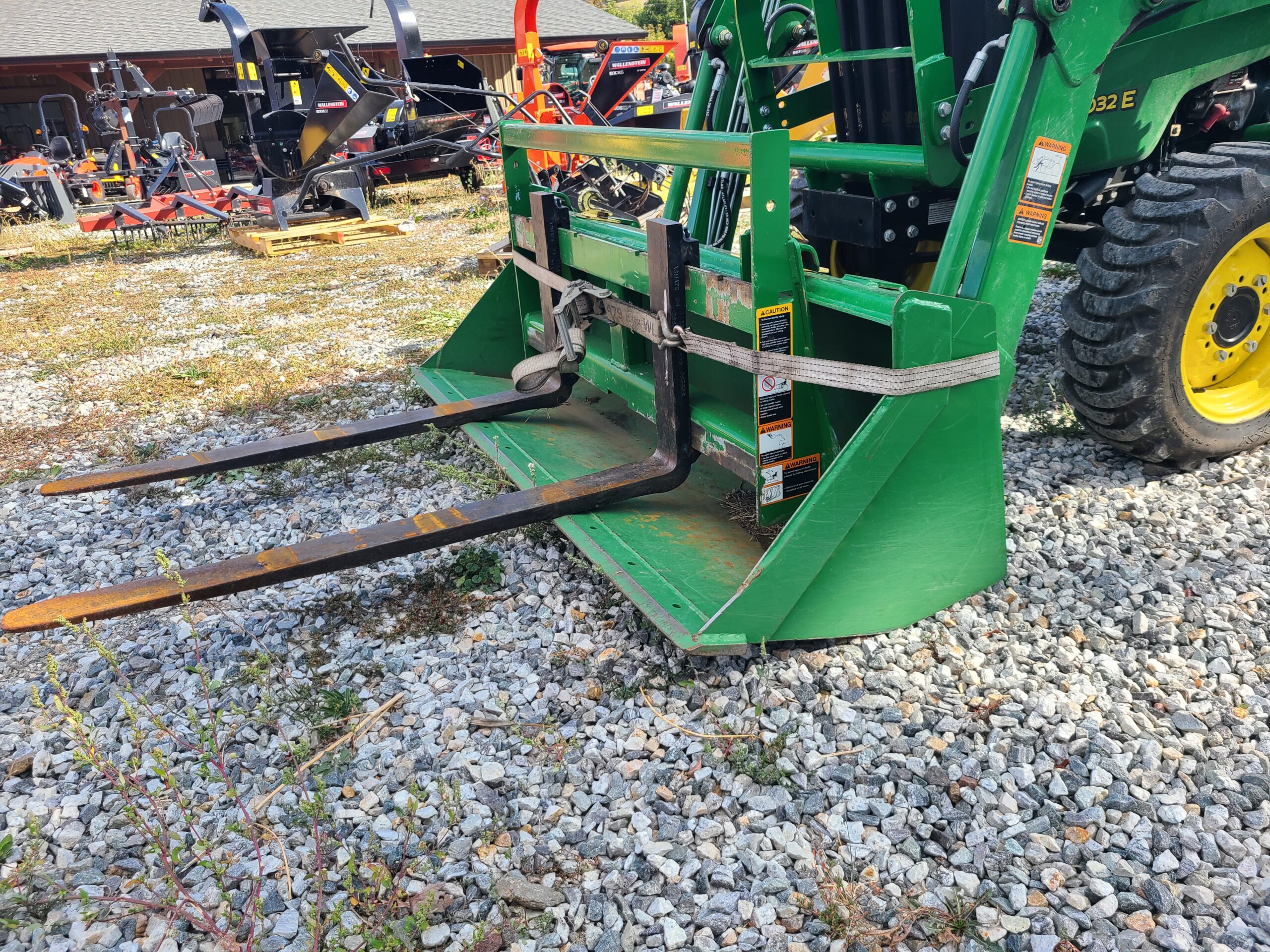

| front-end loader | |
 Â Attachment details … |
| Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 40 |
| Battery CCA: | 500 |
| Battery volts: | 12 |
| Battery Group: | 22NF |
